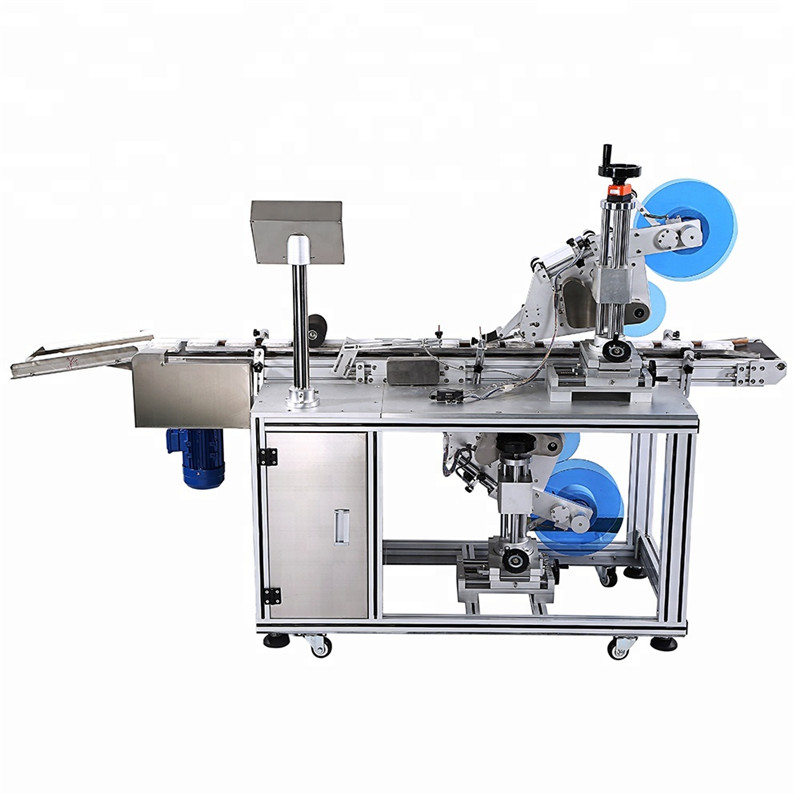

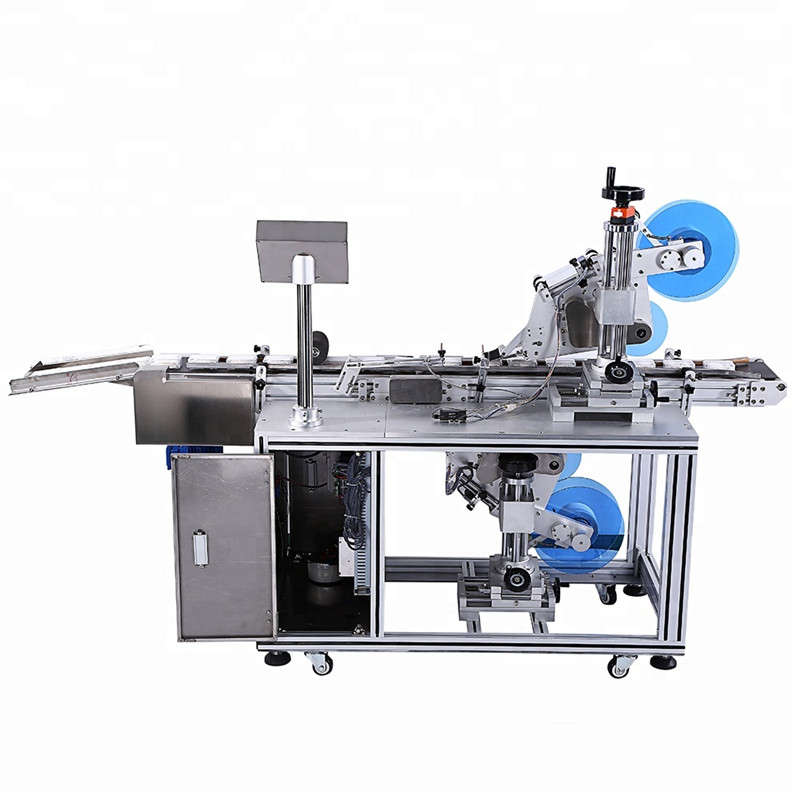

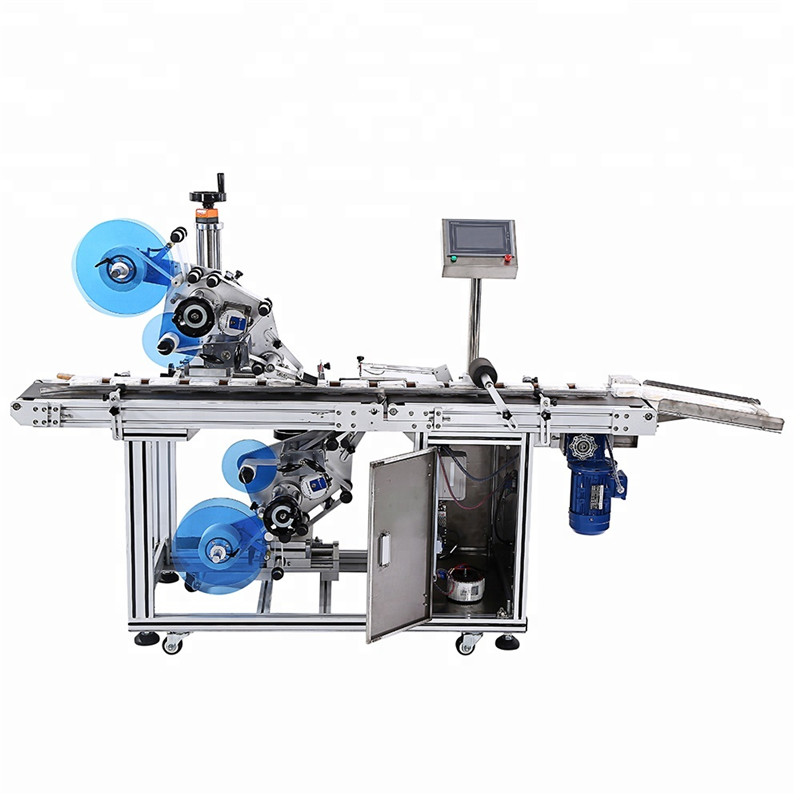

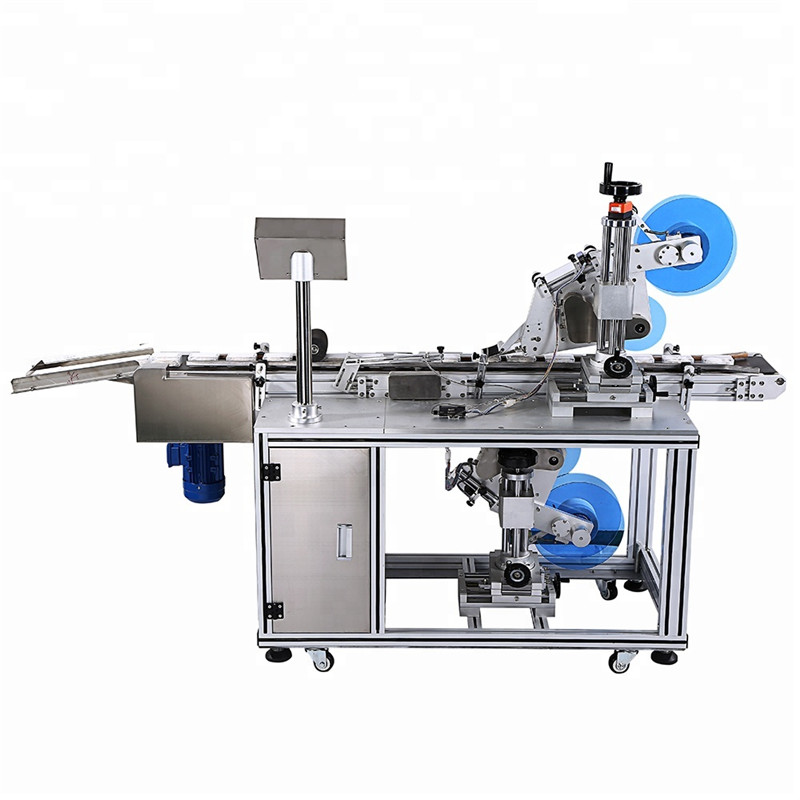

Automatic Top and Bottom Flat Labeling Machine

Automatic Top and Bottom Flat Labeling Machine
It used to attach label oranti-fakelabels on a variety of square box or a flat surface. The design of the mainframe part absorbs the labeling transmission mode of the imported machine, which solves the unstable factors of the general domestic labeling machine. Electric eye detection and synchronization tracking to ensure that labeling speed and conveying speed synchronization. At the same time, the speed of labeling is adjustable, the operation is simple. It’s ideal equipment for food, pharmaceutical, chemical, cosmetics and other enterprises.

This machine uses English touch screen, has the function of 50 sets of data memory. Changing the product and labels only by touching screen to realize change the position and length of labels, no need to manual adjusting electric eye.

Labeling accuracy±1mm (excluding products, labels, error)
Apply the product sizeLength: 40-400mm Width: 40-200mm Thickness: 0.2-120 mm (Can be customized)
Applicable to the power supply220V/50HZ (Need to add a voltage converter, according to the local voltage of different country)
Apply labels outside diameter¢240mm
Power consumption700W
Net weightAbout 400Kg
Labeling speed40–80 pcs/min (related to the product and label size)
Apply label sizeLength:6-150mm; Width: 15-130 mm(Can be customized)
Apply labels inside diameter¢76mm
Voltage220V
Net size (L*W*H)Machine size: 1980*730*1420 mm Packing size: 2050*850*1500mm

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor .

Details:

top and bottom labeling at the same time

top and bottom labeling at the same time

Top side and bottom are each for a labeling head, so the top and bottom label can labeling at the same time.

top and bottom labeling head

subdivided stepper motor or servo motor drive to send labels, accurate label delivery; label belt bypass correction mechanism design to ensure that the label does not shift left and right during the traction process; eccentric wheel technology is applied to the traction mechanism, the traction label is not Slip to ensure accurate labeling;

top and bottom labeling head
Automatic photoelectric tracking
Automatic photoelectric tracking

with no production no labeling, no standard automatic calibration and automatic label detection function to prevent leakage and label waste

Touch screen

Touch screen operation interface, full Chinese annotation and perfect fault prompt function, various parameter adjustments are simple and quick, and easy to operate; Other languages available: such as: Spanish, Arabic, French. and so on.

Touch screen
Import label sensor

Import label sensor

1. Germany LEUZE transparent label sensor
2. Italy Data logic sticker label sensor
3. Germany sick all-purpose label sensor, can use for transparent and sticker label.
Remark: Standard model with Italy Data logic sticker label sensor.

Powerful

with production counting function, power saving function, production number setting prompt function, parameter setting protection function, convenient for production management;

Powerful
Thermal transfer coding

more use
This item is an additional feature added. Price calculated separately.

Thermal transfer coding
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)

Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
